TP150
Tire Pressure Diagnostic Device

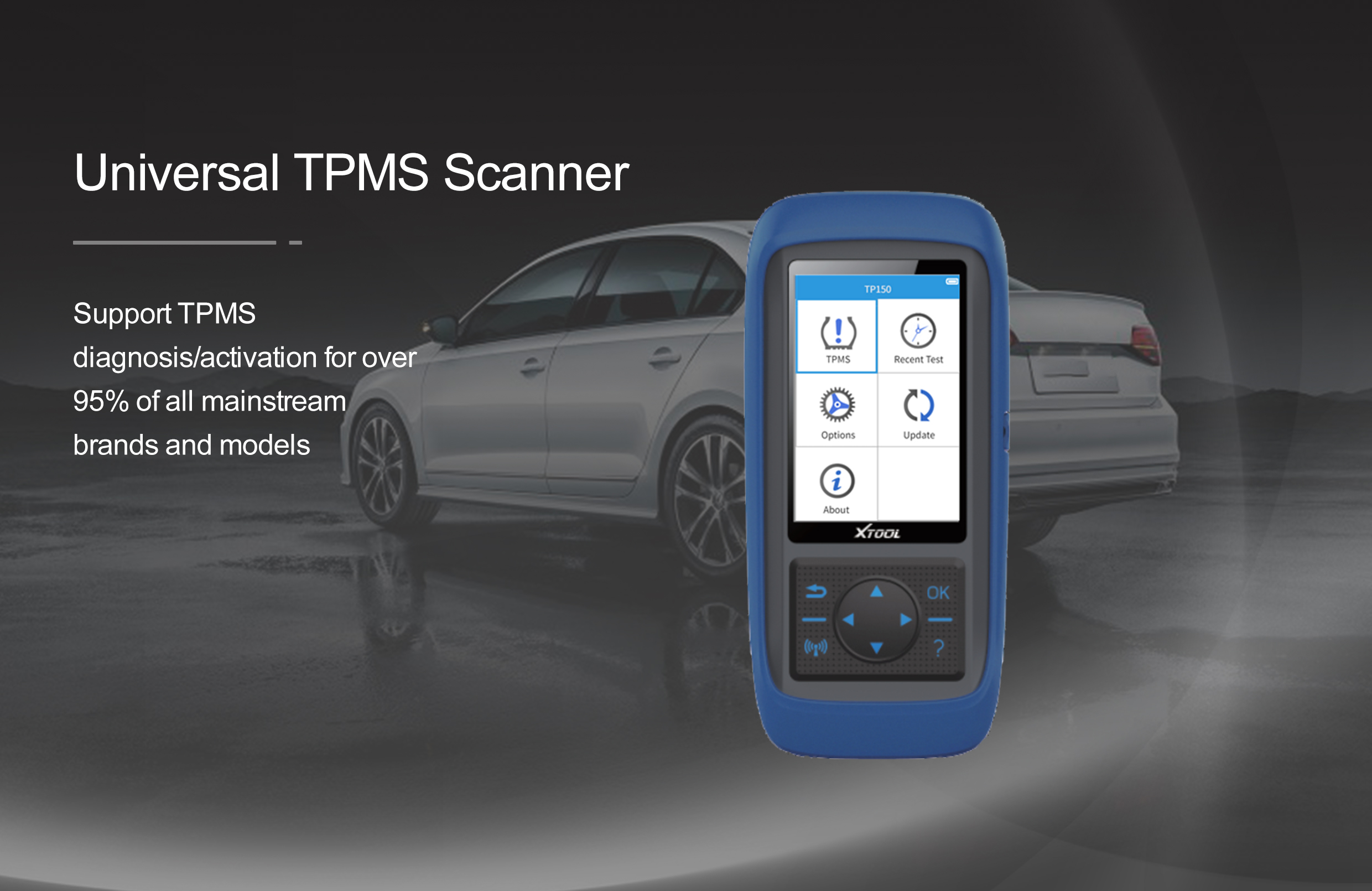

TP150 is a special inspection device launched by Xtool for the automotive tire pressure diagnosis market, which integrates tire pressure programming, tire pressure diagnosis, and tire pressure matching. It supports activation of 315MHz and 433MHz tire pressure sensors, can perform tire pressure diagnosis on thousands of models, and can wirelessly program 1-8 TS100 universal programmable tire pressure sensors, which makes it suitable for different models.
Description
-

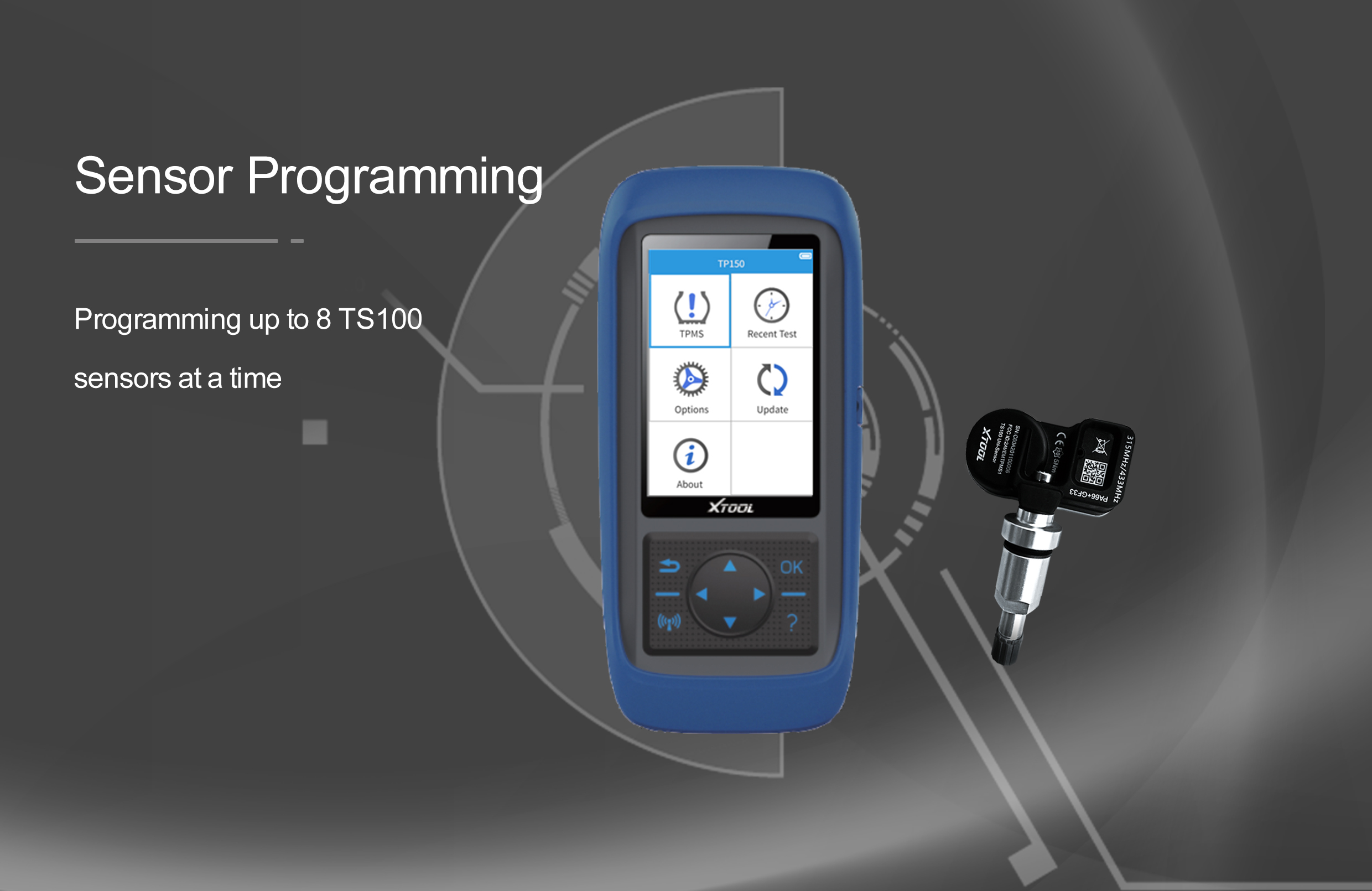

● Program up to 8 sensors
-
● TPMS status check
-
● Read/Check/Relearn Tire-Pressure Sensors on the vehicle
-
● Check TPMS fault codes
-

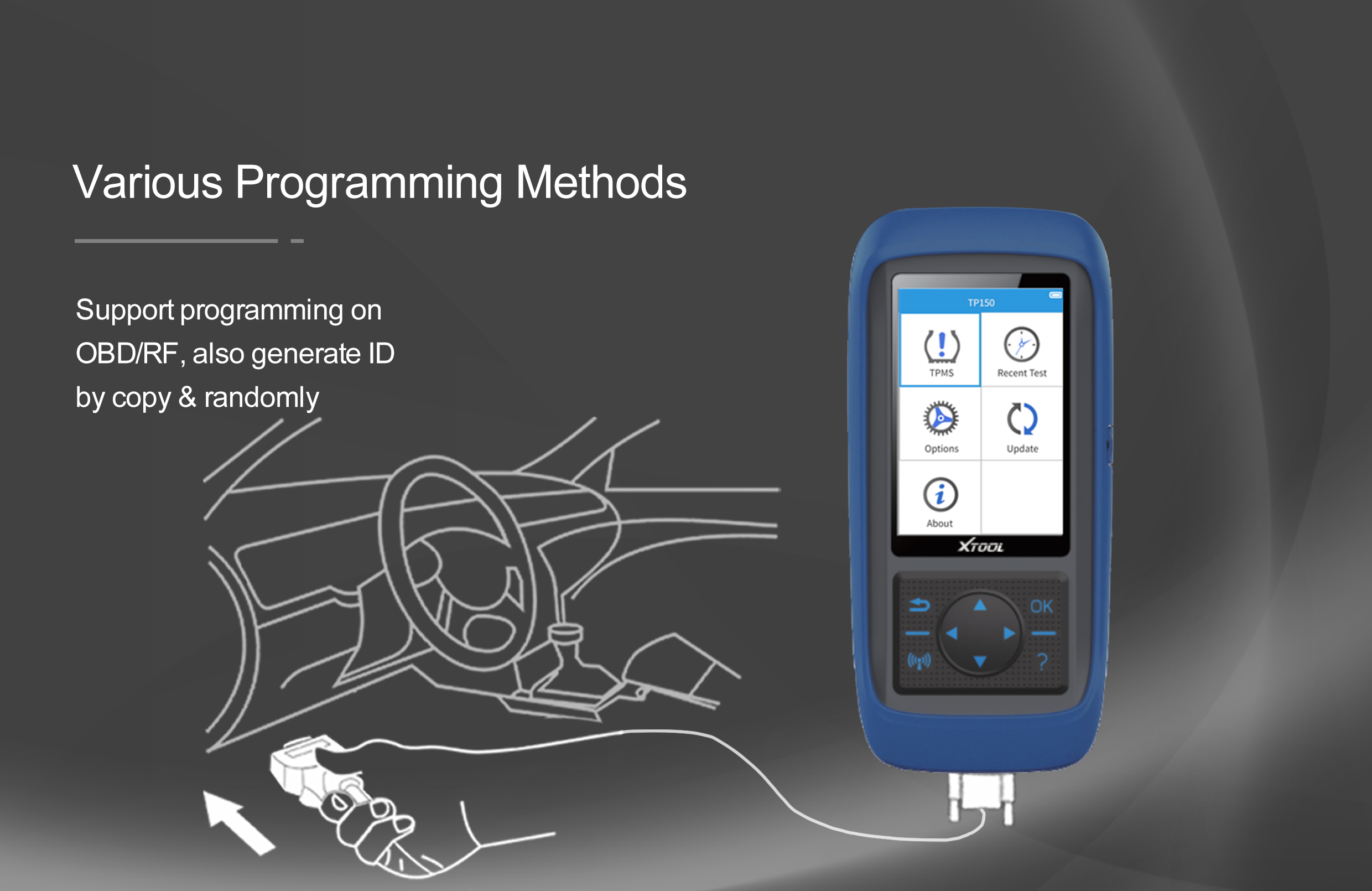

● Display vehicle relearn procedures / Perform relearn via OBD or sensor triggering
-

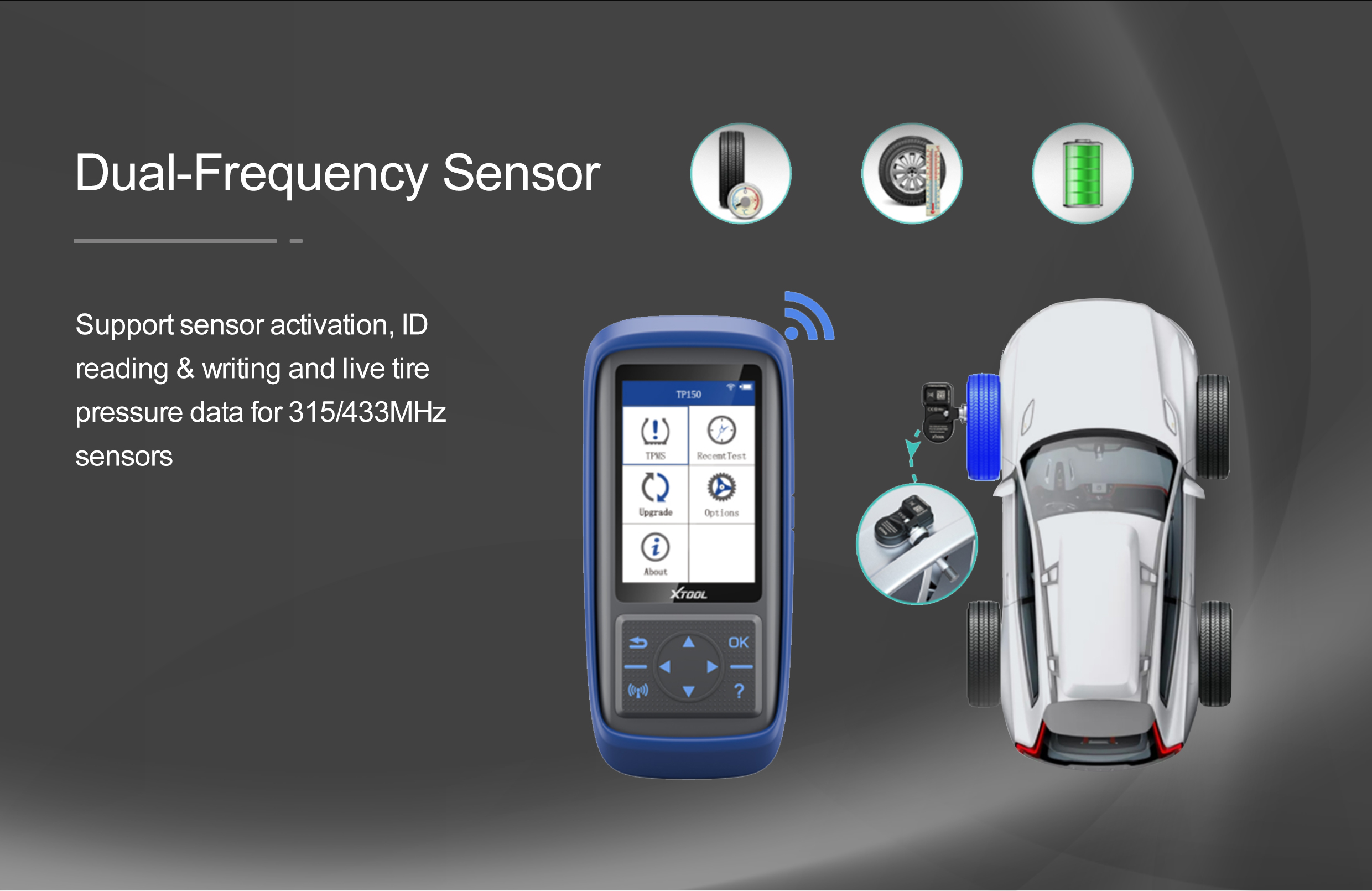

● Activate 315/433MHz tire pressure sensors
-
● FREE software update via Wifi connection & 1Yr Warranty
-
● Display sensor ID, battery condition (on select sensors), tire pressure & temperature
-
● Software Updates via PC or Wi-Fi / Easy-To-Use Navigation
-
● 4-inch Color Display 320x480 dpi
-
● 3000mAh Lithium-polymer Battery
Parameters
-
Screen：3.95 inch 320*480 TFT-LCD colors screen
-
MCU：IC STM32
-
TF Card：8G Storage
-
Capacity：3000mAh，Max charging current 1.2A，USB charging current 500mA
-
Operating temp.：-10℃~60℃
-
Storage temp.：-20 ℃~70℃
-
Size：200×92×33mm
-
Weight：0.4kg
| TPMS--Europe | |
| TPMS--America | |
| TPMS--Japan | |
| TPMS--Korea | |
| TPMS--Australia | |
| TPMS--China | |
| DISPLAY PROGRAM--TP150WIFI |
Accessories
- Certificate of Quality
- Quick Guide
- Packing List
- Paperbox
Cables & Adapters
- Power Charger
- OBD2 Main Cable
- US Charger Plug
- EU Charger Plug
- UK Charger Plug
- USB Type-C Data Cable
Main Units
- TP150
